Description
Tapered flat fan nozzles are suitable for application of fertilisers, herbicides, fungicides and insecticides. They are particularly suited to use in multiples of two or more on spray booms. They produce a narrow oval spray pattern with tapered ends. Droplet sizes range from fine to coarse at operating pressures of 2 - 4 bar.
| Flat Fan Nozzle Spray Pattern | |
|---|---|
 |
Elliptical Spray Pattern with Tapered Edges and Fine - Medium Sized Droplets |
Tapered flat fan nozzles are suitable for application of fertilisers, herbicides, fungicides and insecticides. They are particularly suited to use in multiples of two or more on spray booms. They produce a narrow oval spray pattern with tapered ends. Droplet sizes range from fine to coarse at operating pressures of 2-4 bar.
| Product Overview | |
|---|---|
| Common Use | Herbicides, Fungicides, Insecticides |
| Applicator | Boom Mounted |
| Technology | Elliptical Orifice |
| Spray Angle | 110° |
| Pattern | Tapered Flat Fan |
| Pressure Range | 2 - 4 Bar |
Tapered flat fan nozzles produce a narrow, oval spray pattern with tapered ends. Spray volumes are higher in the centre and lower at the edges of the pattern making these nozzles suited to use when overlapped on a spray boom.
The nozzles are designed for downwards spraying for broadcast applications of herbicides and insecticides. When used on a mini-boom they will achieve an even spray distribution of 1 - 4 metres across.
Flat fan nozzle with a fine spray quality are suitable for applications of herbicides and insecticides. Fine to medium spray quality nozzles can also be used for fungicide and fertiliser applications. Nozzles with a coarse spray quality are suited to spot spraying of large weeds and broadcast spraying of biological pest controls.
Flat Fan Nozzle Details
Please select your size/colour option from the drop-down at the top of the page.
| Nozzle Image | Nozzle Size | Use | Application Equipment | Spray Angle | Pressure (Bar) | Droplet Size | Flow Rate (L/m) | Application Rate (L/ha) |
|---|---|---|---|---|---|---|---|---|
 |

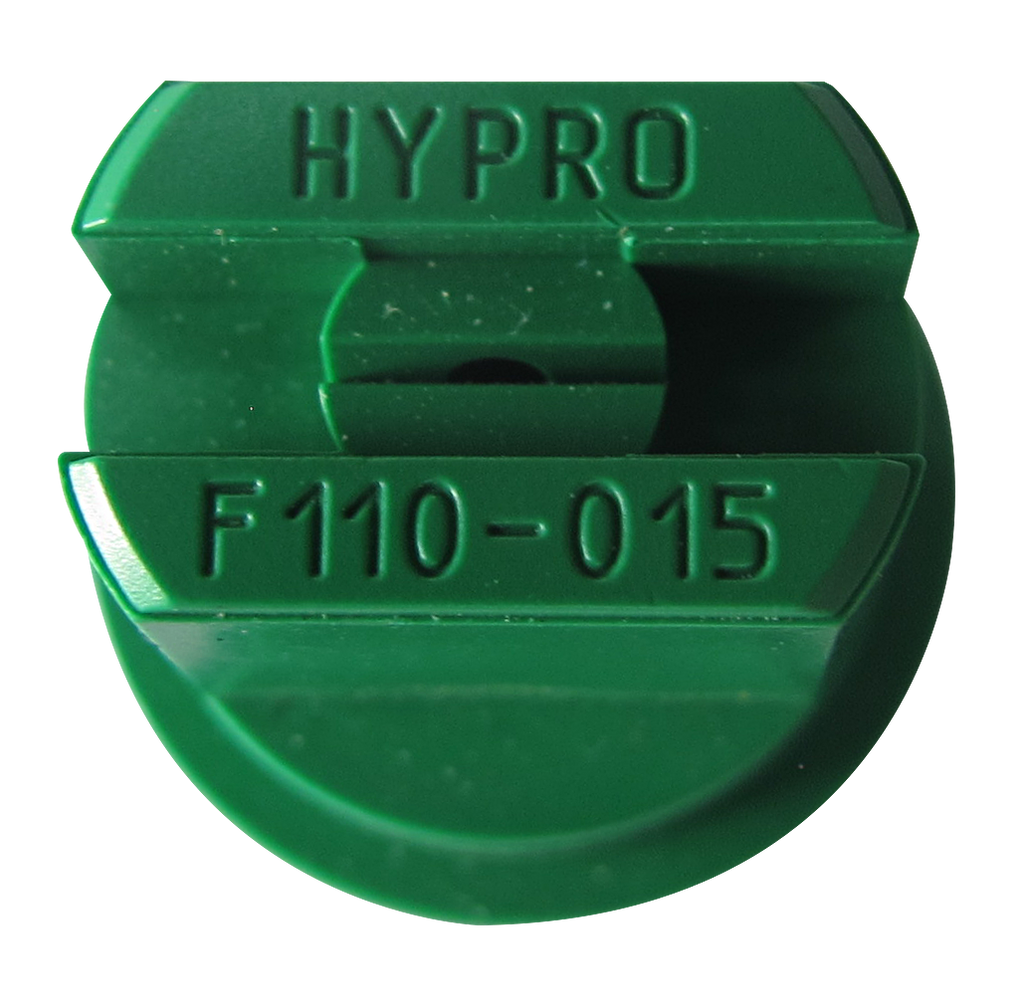

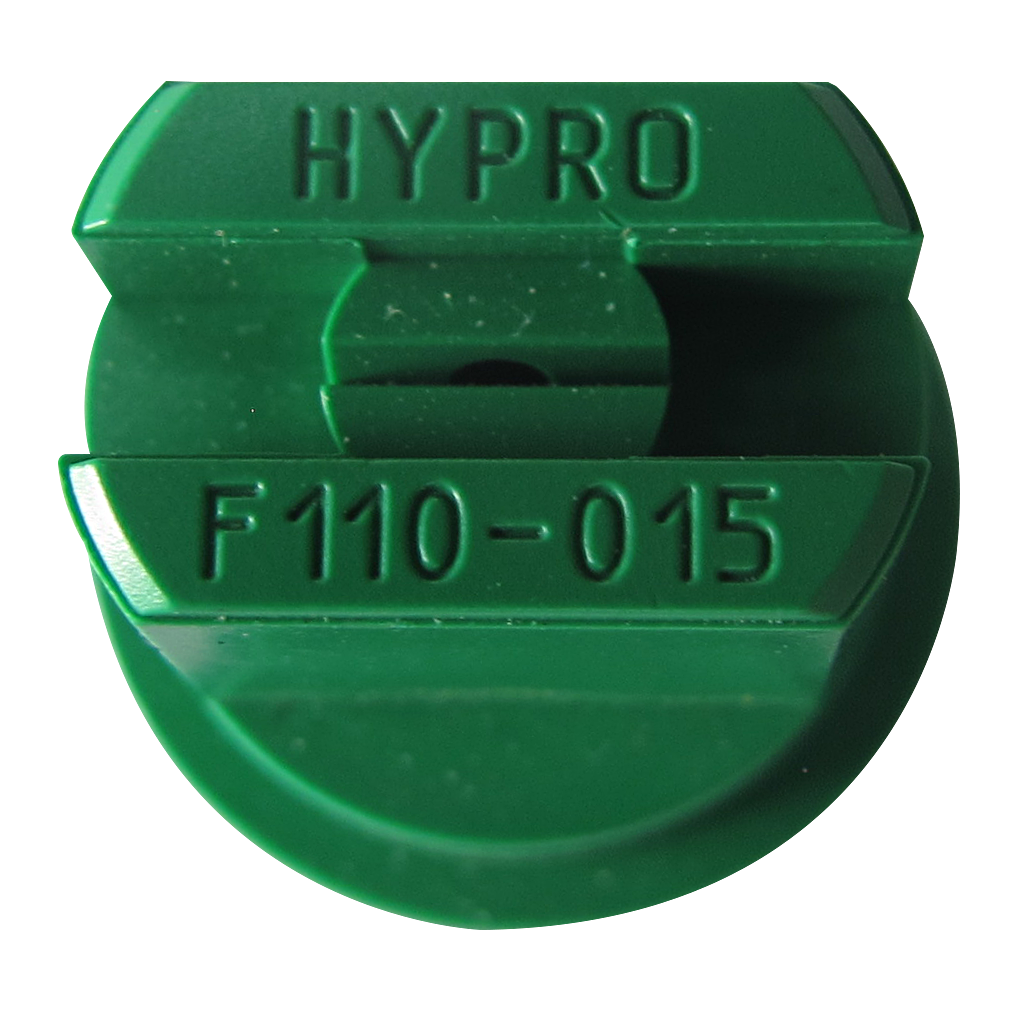

F110-015 | Herbicides & Insecticides | Boom Mounted | 110° | 2 | Fine | 0.5 | 39 |
| 3 | Fine | 0.6 | 48 | |||||
| 4 | Fine | 0.7 | 55 | |||||
 |

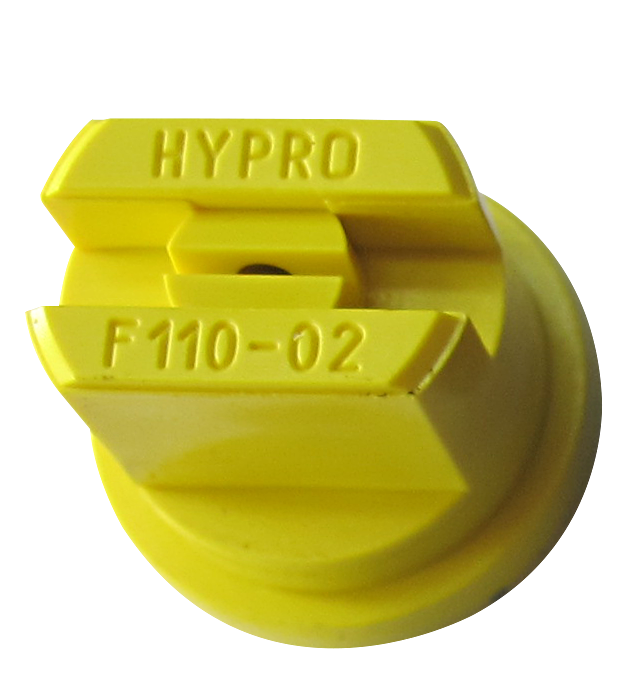

F110-02 | Herbicides & Insecticides | Boom Mounted | 110° | 2 | Fine | 0.7 | 52 |
| 3 | Fine | 0.8 | 64 | |||||
| 4 | Fine | 0.9 | 74 | |||||
 |

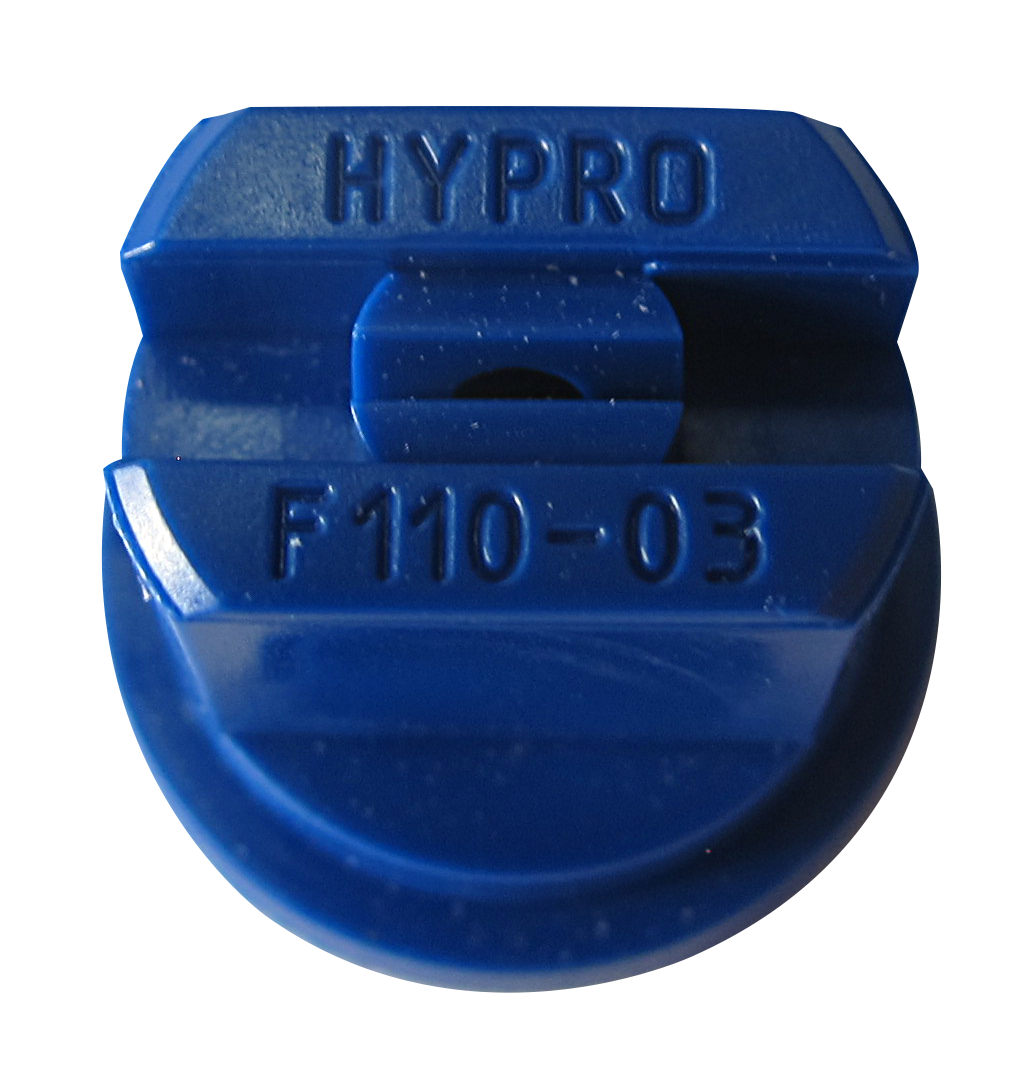

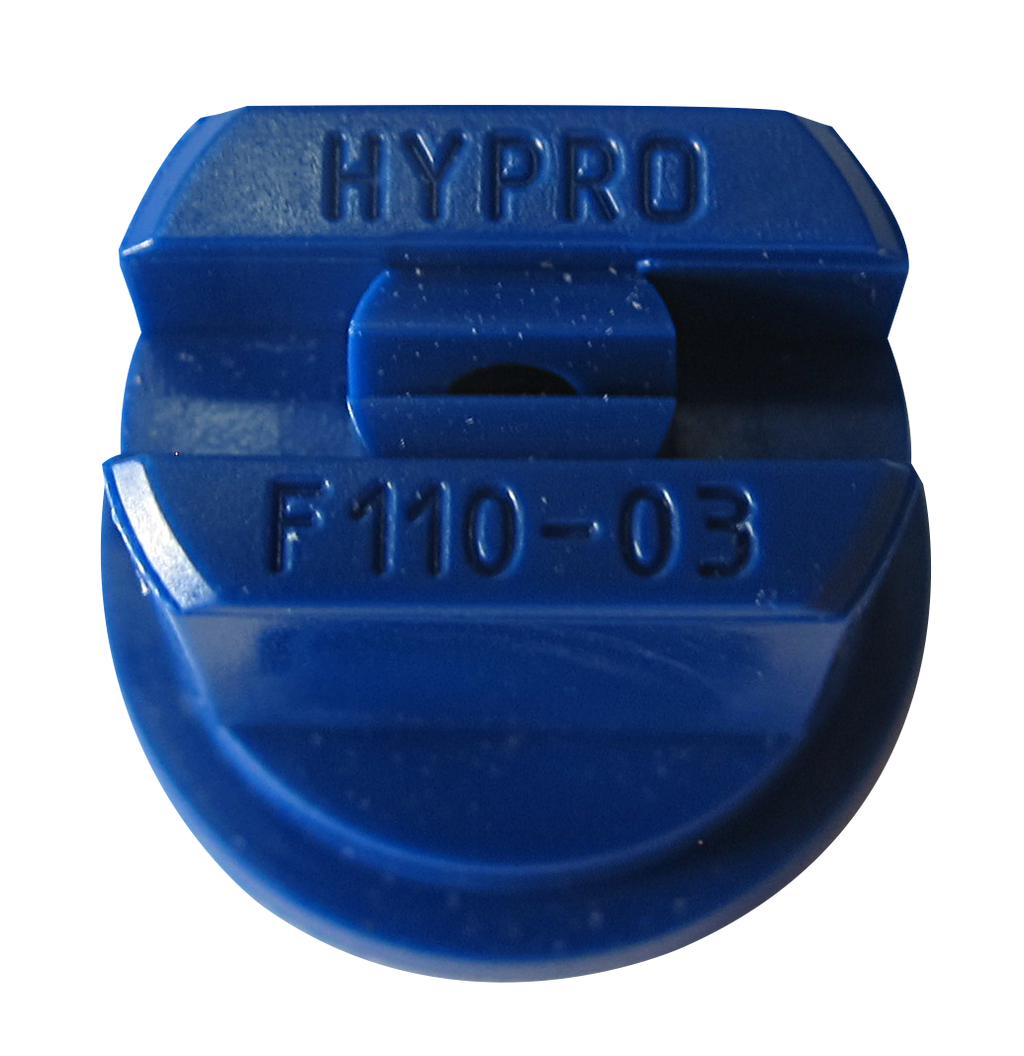

F110-03 | Herbicides & Insecticides | Boom Mounted | 110° | 2 | Fine | 1.0 | 78 |
| 3 | Fine | 1.2 | 96 | |||||
| 4 | Fine | 1.4 | 111 | |||||
 |

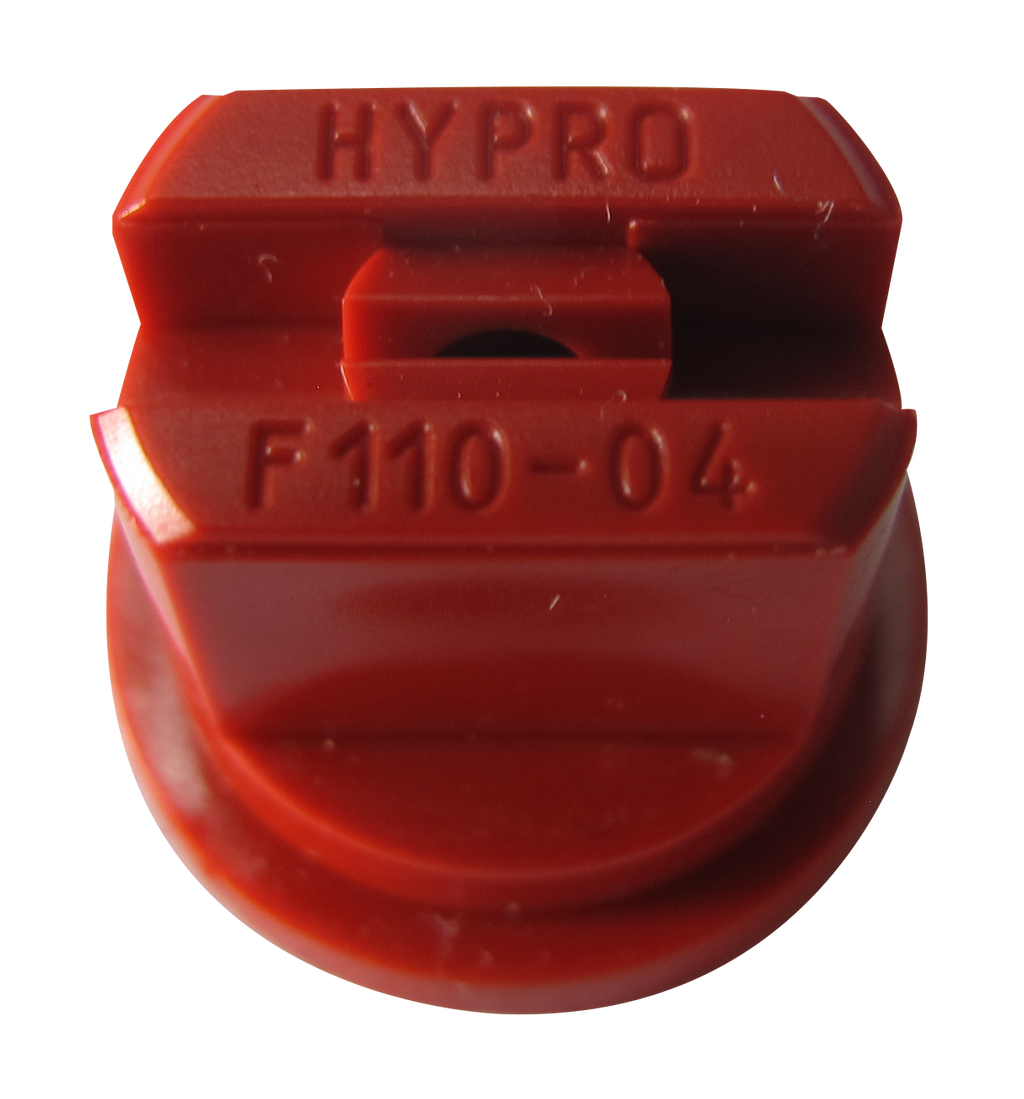

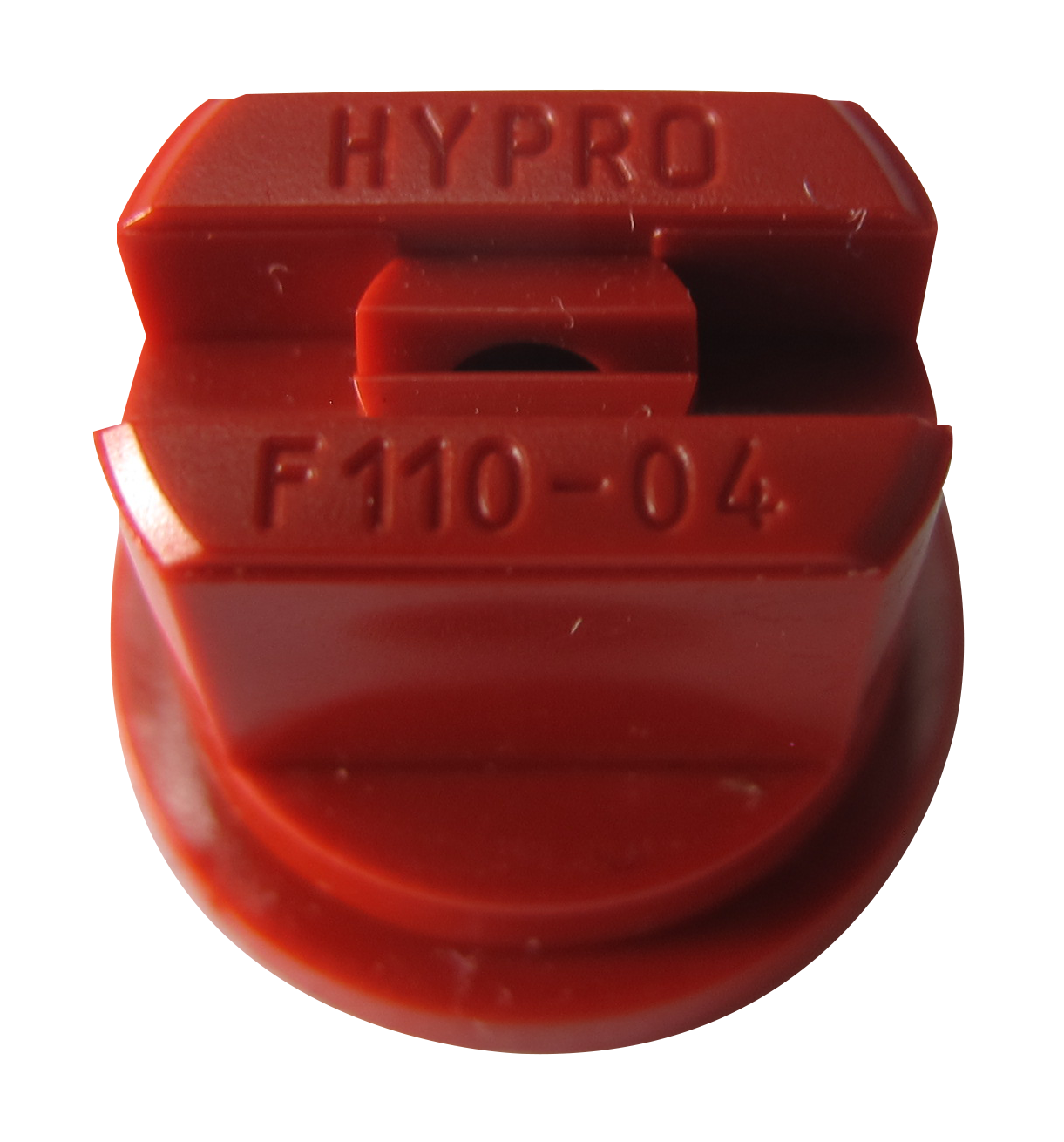

F110-04 | Herbicides & Insecticides | Boom Mounted | 110° | 2 | Medium | 1.3 | 105 |
| 3 | Fine | 1.6 | 128 | |||||
| 4 | Fine | 1.9 | 148 | |||||
 |

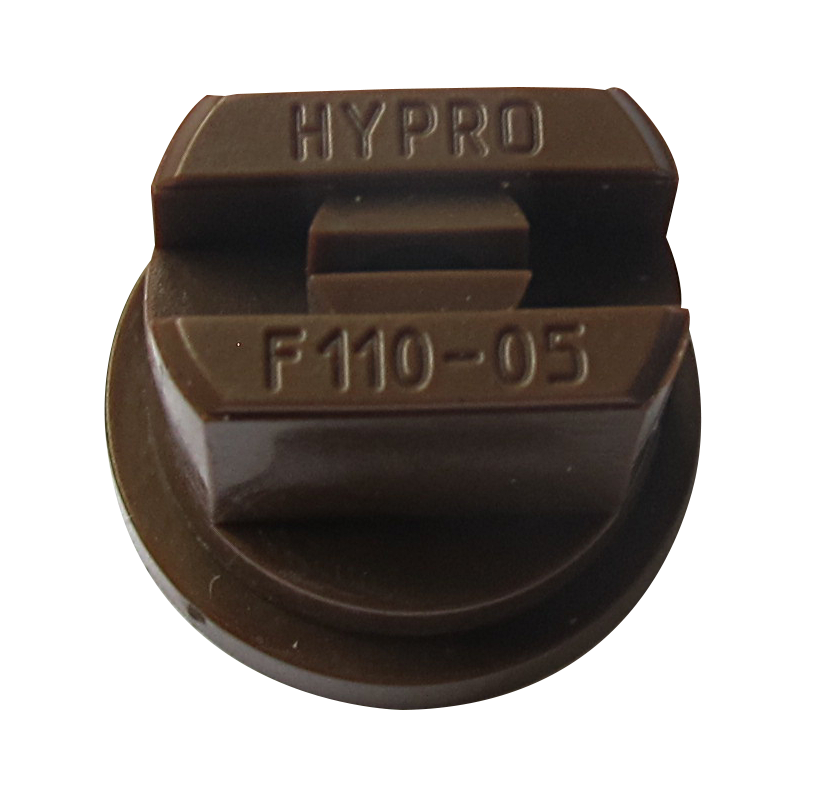

F110-05 | Herbicides & Insecticides | Boom Mounted | 110° | 2 | Medium | 1.6 | 130 |
| 3 | Fine | 2.0 | 160 | |||||
| 4 | Fine | 2.3 | 185 | |||||
 |

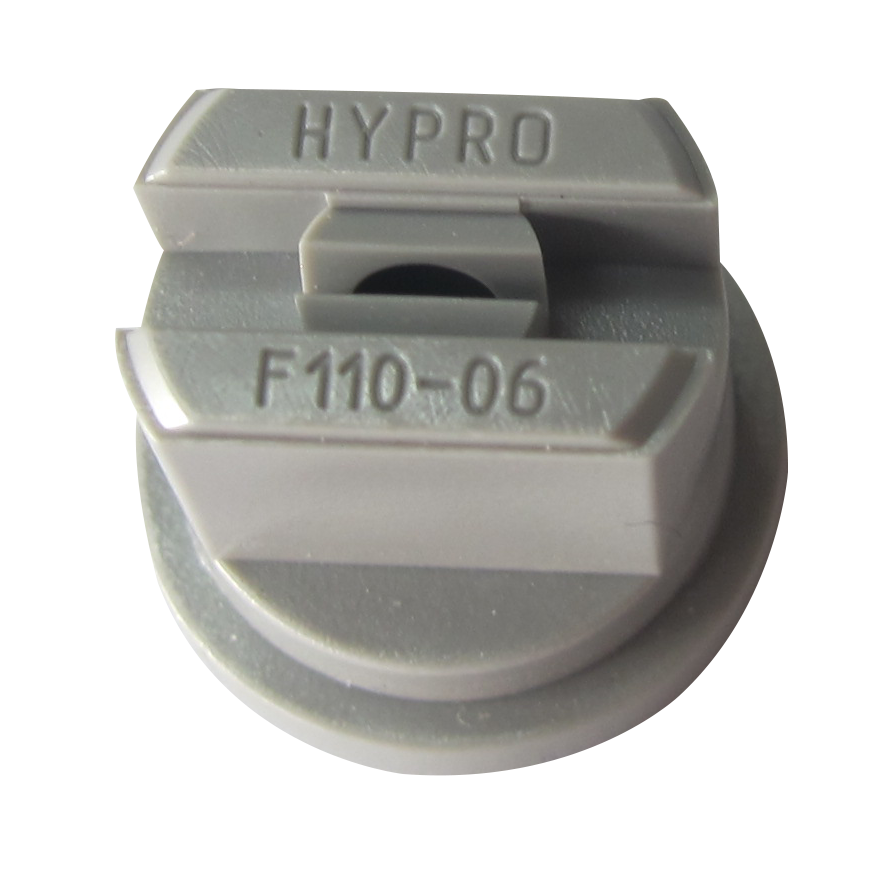

F110-06 | Herbicides, Fungicides, Fertilisers & Insecticides | Boom Mounted | 110° | 2 | Medium | 2.0 | 157 |
| 3 | Medium | 2.4 | 192 | |||||
| 4 | Fine | 2.8 | 222 | |||||
 |

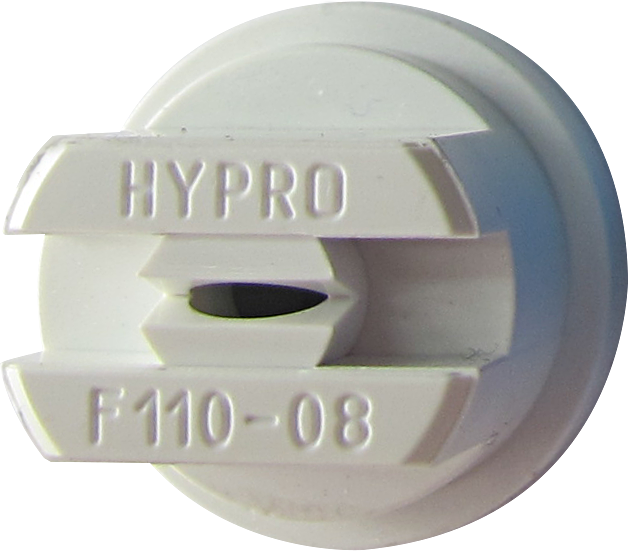

F110-08 | Herbicides, Fungicides, Fertilisers & Insecticides | Boom Mounted | 110° | 2 | Medium | 2.6 | 209 |
| 3 | Medium | 3.2 | 256 | |||||
| 4 | Fine | 3.7 | 296 | |||||
 |

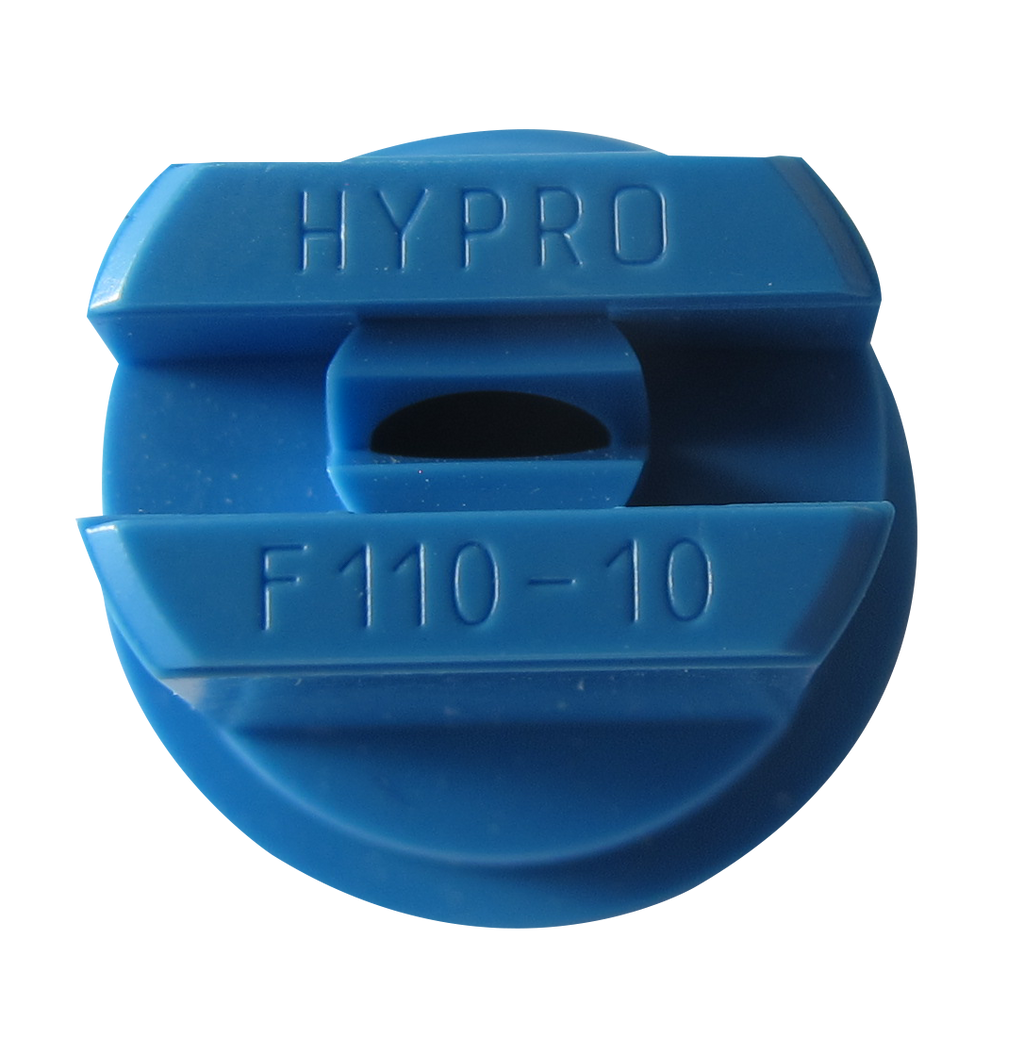

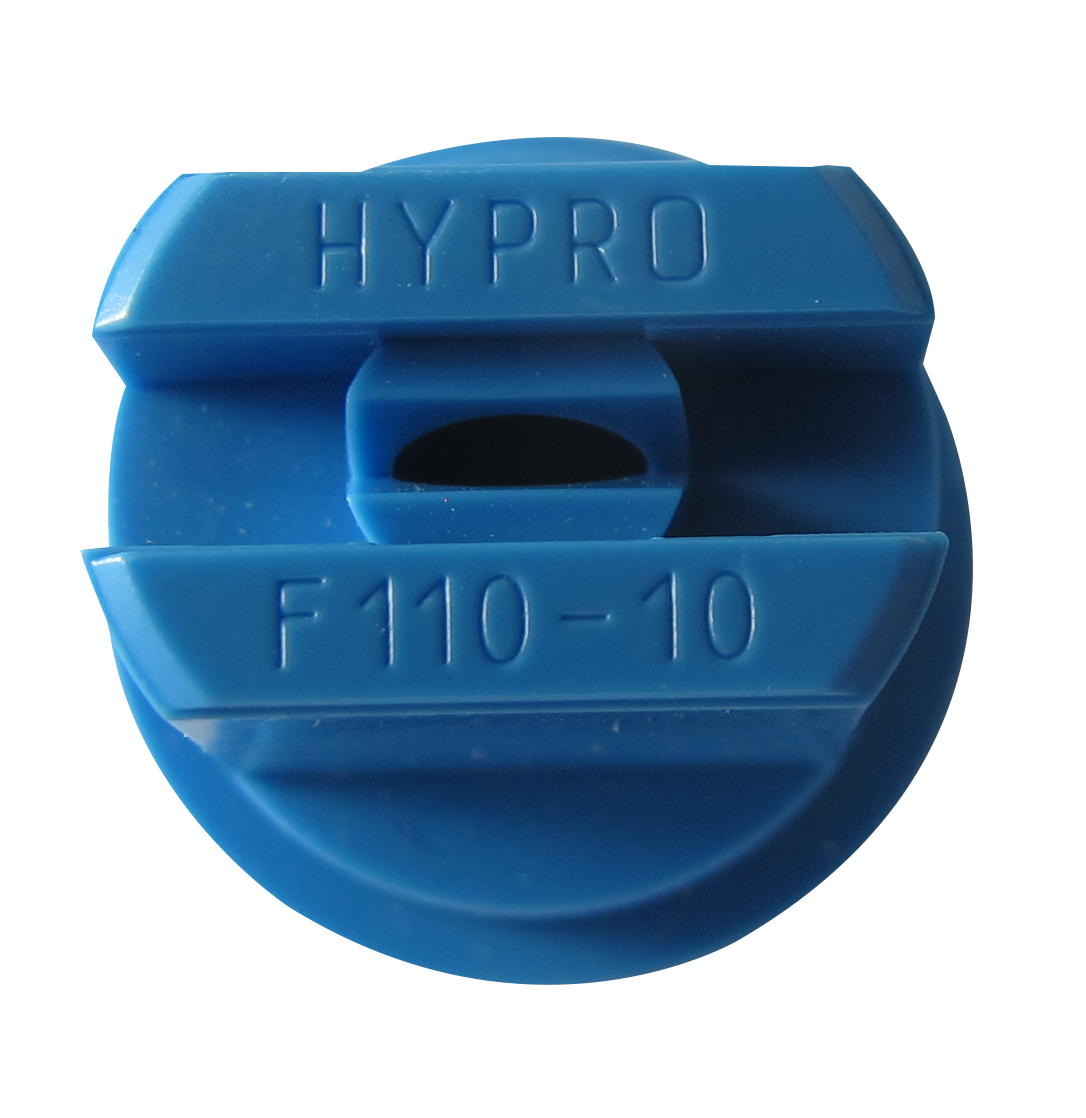

F110-10 | Herbicides (large, broad-leaved weeds) & Biological Pest Control | Boom Mounted | 110° | 2 | Medium | 3.3 | 262 |
| 3 | Medium | 4.0 | 320 | |||||
| 4 | Medium | 4.6 | 370 |
Application rate for nozzle sizes stated at 15 km/h forwards speed.
For further information on the Flat Fan Nozzle, please contact a member of our technical sales team on 01952 897917
